Underwater Towed-Body Elevon Actuator
(2006)

Housed, sealed motor/gearbox assy along with housed, sealed driver and associated underwater cabling. Optical encoder feedback, closed loop servo.

Actuator

If you have Solidworks eDrawings Viewer, you can view or download models in e-drawing format by clicking on the thumbnails or links below:

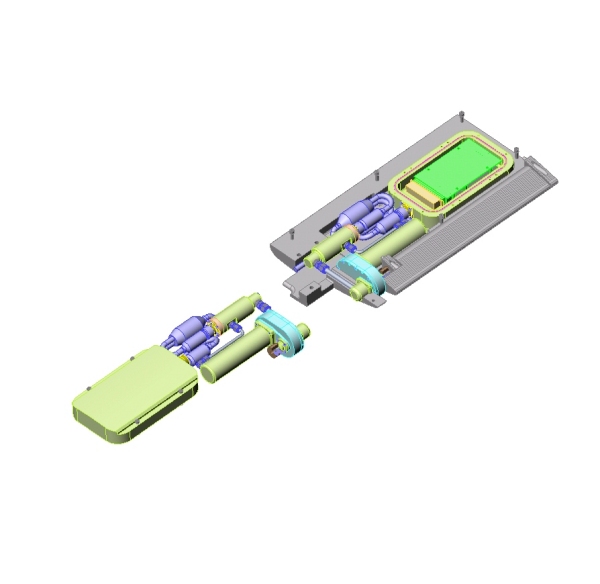

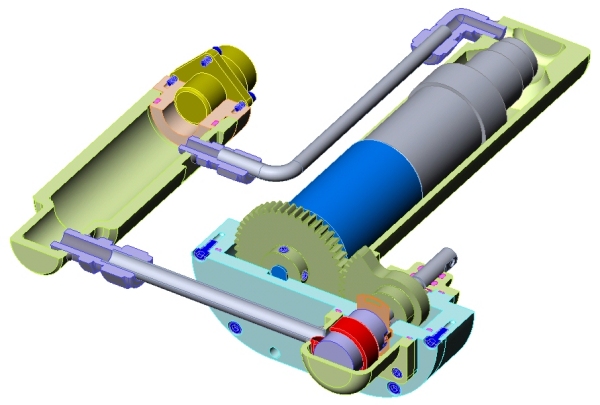

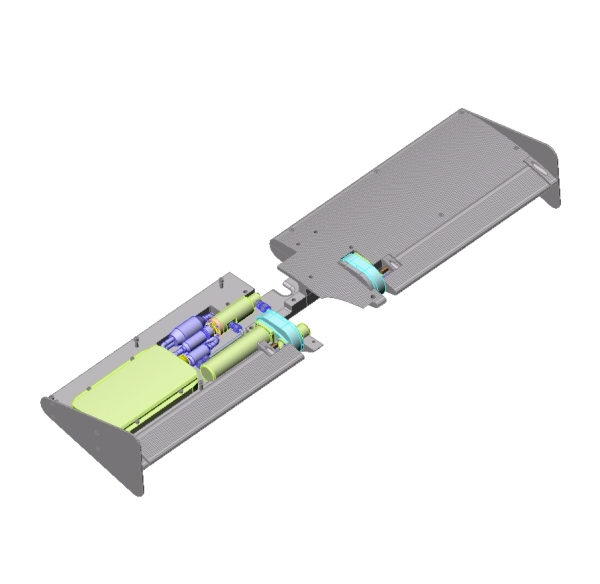

Exploded Actuator Assy		Actuator Section View		Actuator

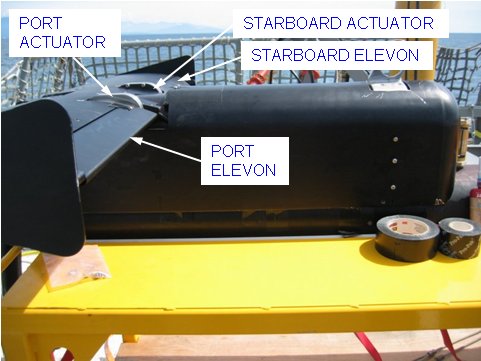

Installed Actuator

Pacifico:

• Conceptualized the design
• Created layout, detail design
• Created detail drawings
• Procured prototype hardware procurement
• Assembled and tested prototype unit
