R&D Fiber Optic Cable Flow-induced Deployment Equipment
(2003)

This breadboard-level system is a small pumped-water piping/plumbing system through which a small fiber optic cable is deployed and retrieved. It was successfully developed and ultimately was used on an actual oil well to prove feasibility for downhole sensor deploy & retrieve.

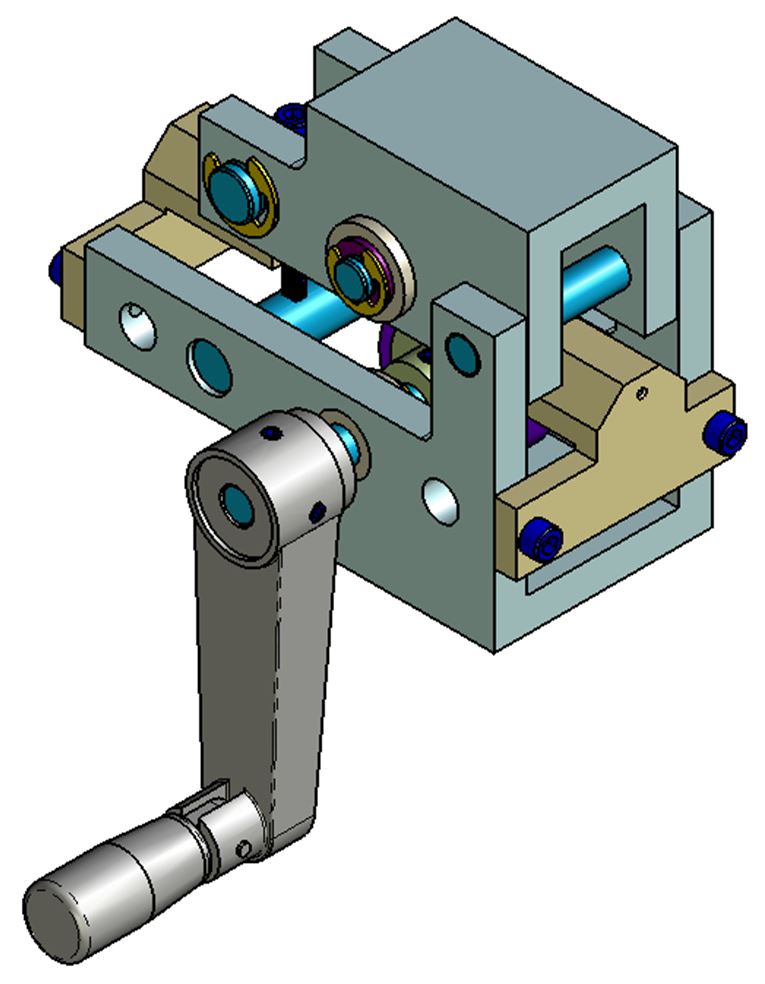

A manual (hand-crank) Pinch-Roller device was used to get the cable started in the system. This was later upgraded to a motorized version.

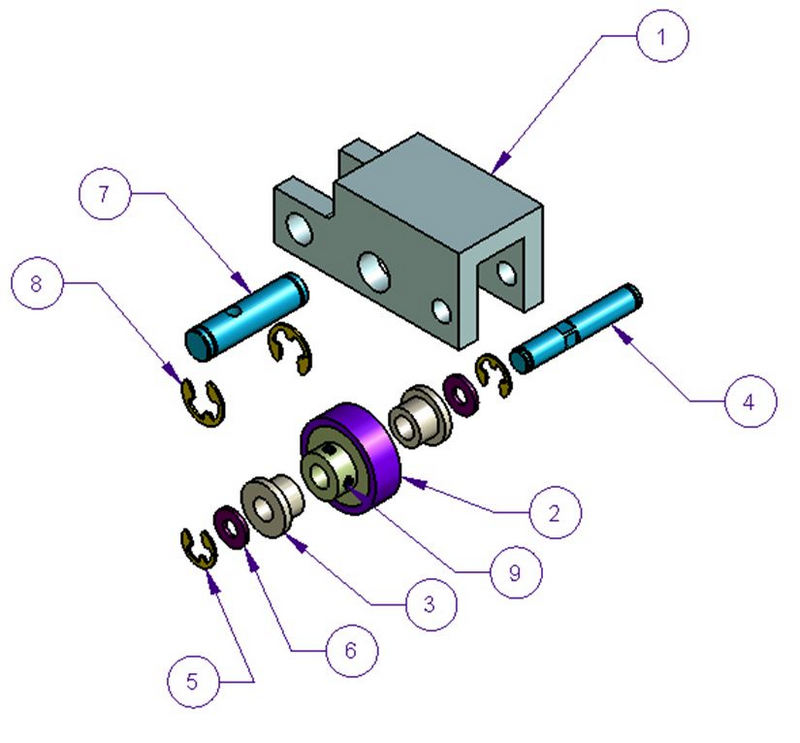

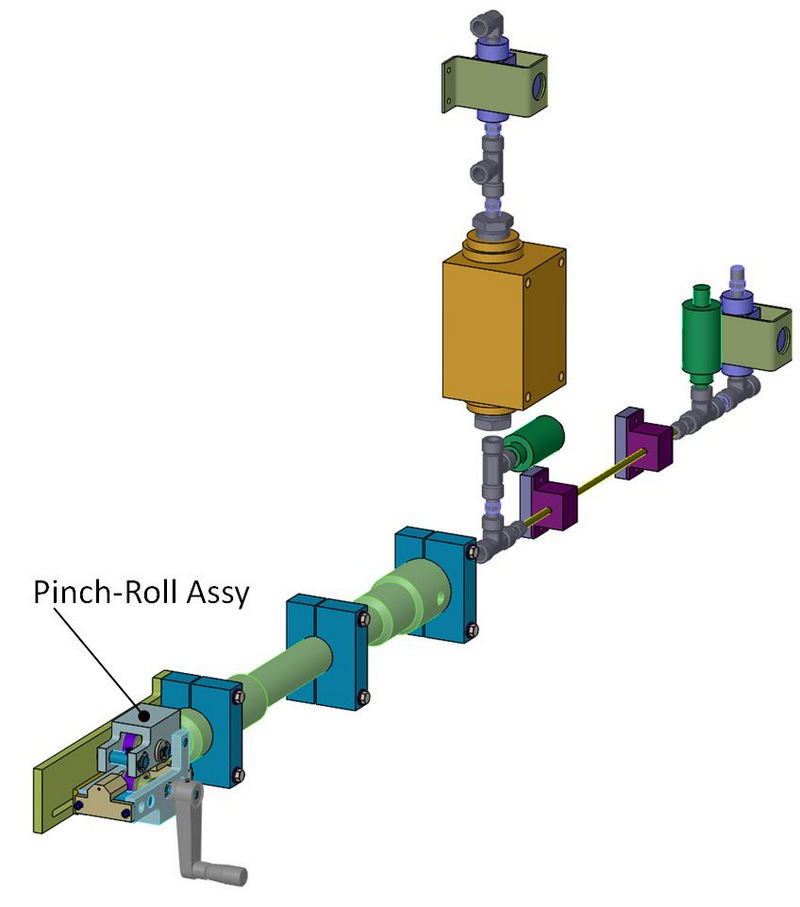

Pinch Roller & Cable Flushing Plumbing Layout - SolidWorks views
