Actuator

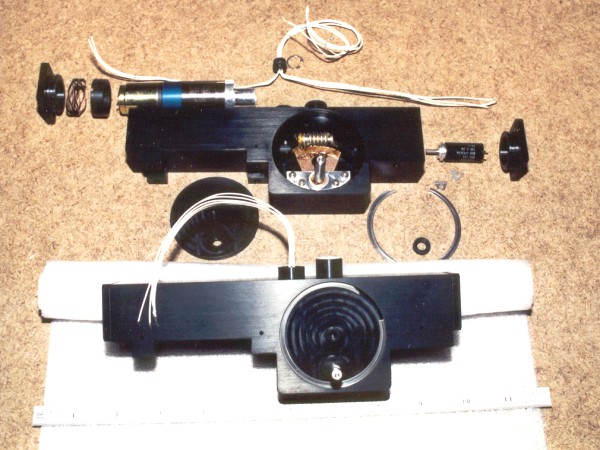

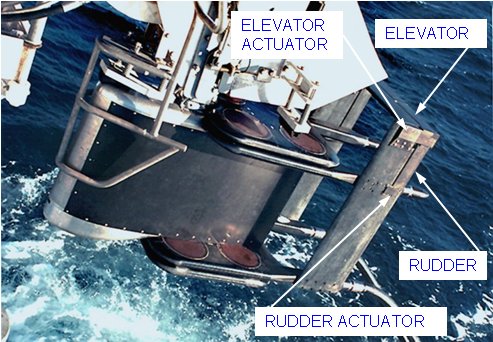

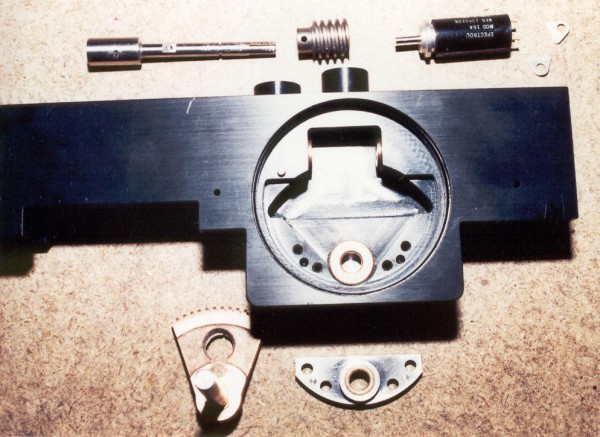

This servo-actuator was designed to move rudder and elevon control surfaces on an underwater vehicle. Features are high-torque electric motor & gearbox, worm drive, 10-turn potentiometer position feedback, pressure proof to 500 psi (operational).

Pacifico:

• Conceptualized the design
• Created layout, detail design
• Created detail drawings
• Ordered machined and catalog parts
• Assembled, tested, and delivered final products.
