Heated Vacuum Chuck

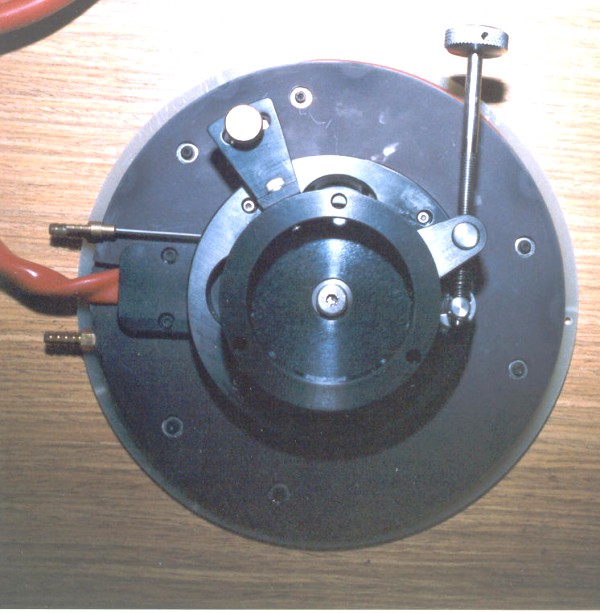

This fixture was designed to precisely locate, hold, and heat a ceramic
substrate, while a laser trimming machine measured and trimmed thick
film circuits on it. Used in production of medical sensor.
Pacifico:
- Conceptualized the design (with customer)
- Created layout, detail design
- Created detail drawings
- Ordered machined and catalog parts
- Assembled, tested, and delivered final product.
