R&D Fiber Optic Sensor Tooling
(2014)

Here are some examples of custom-designed tooling used in the development of optical-fiber sensors.

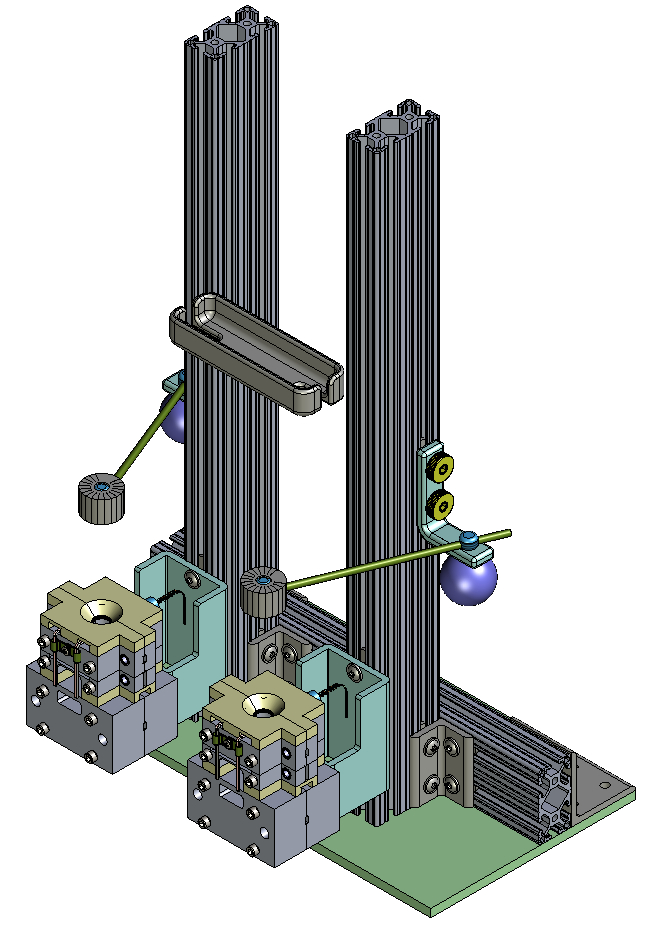

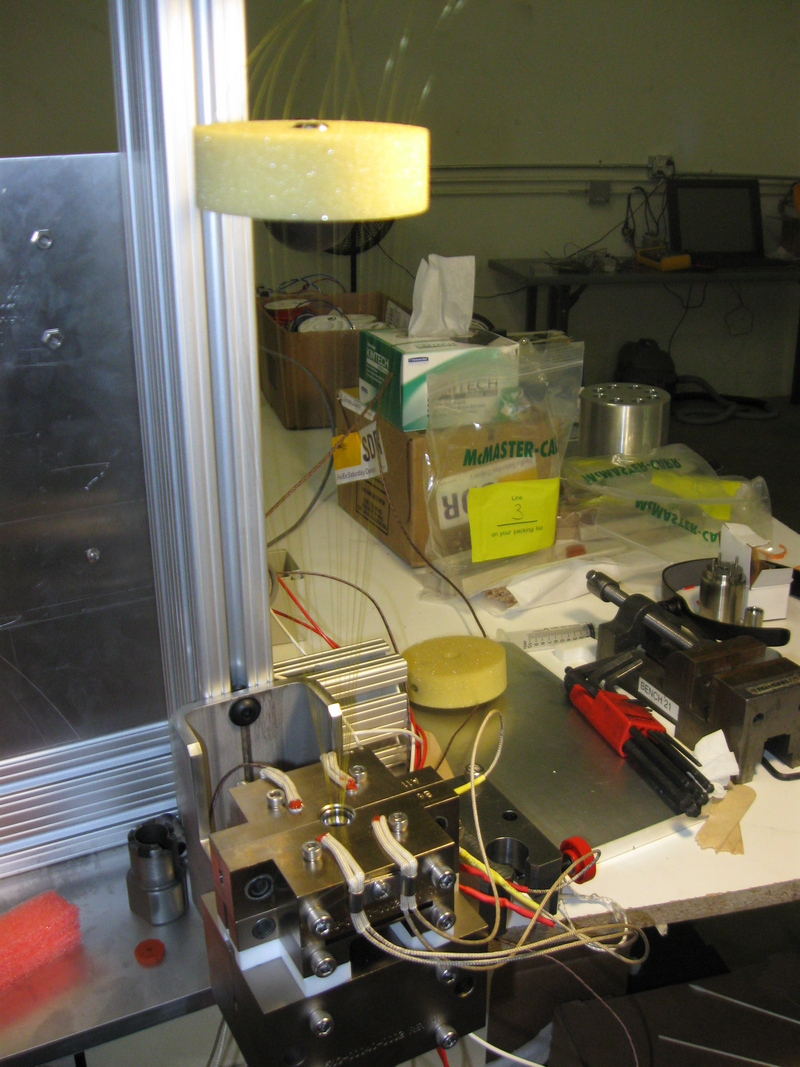

Proprietary Process (system-level) - SolidWorks views and photos

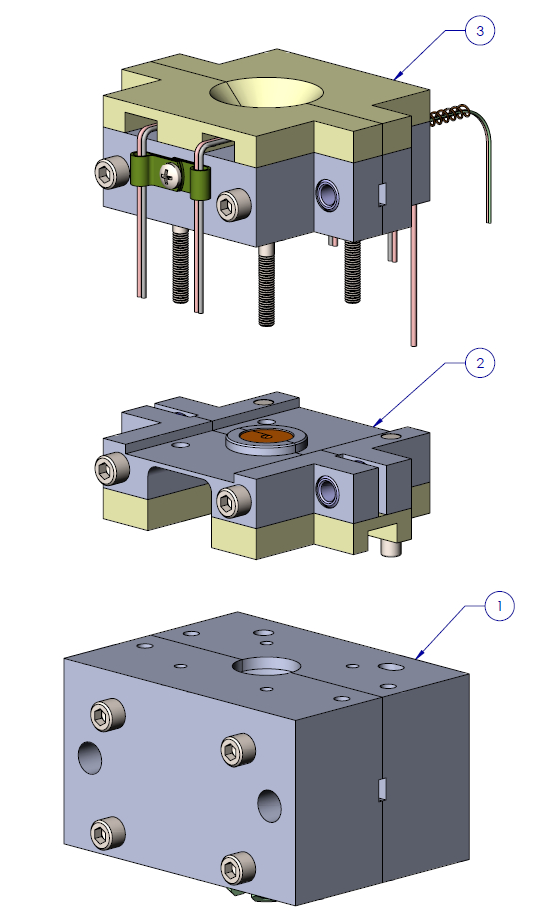

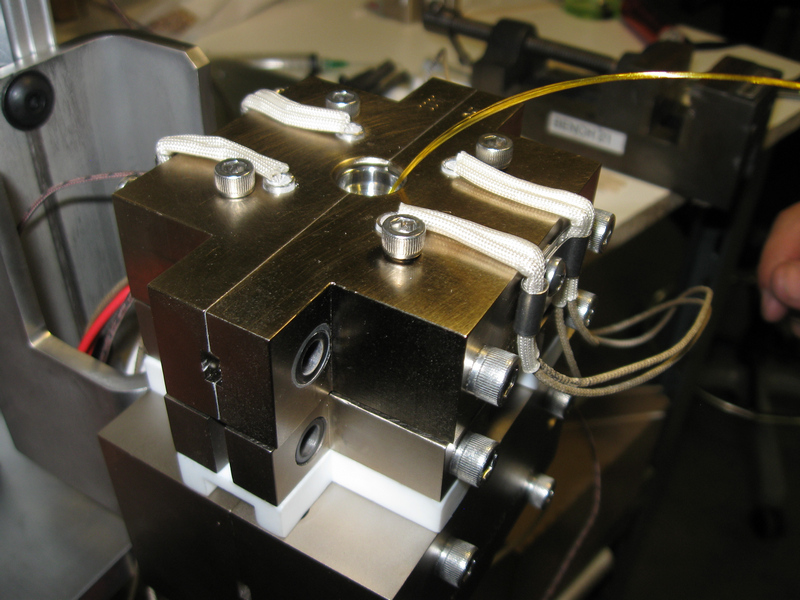

Proprietary Process (component level) - SolidWorks views & photos

An animation showing assembly sequence of some of the process tooling:

Click on the thumbnail above, or the link below to view or download full-size video
Fixture Animation .mp4 file (2.71Mb)

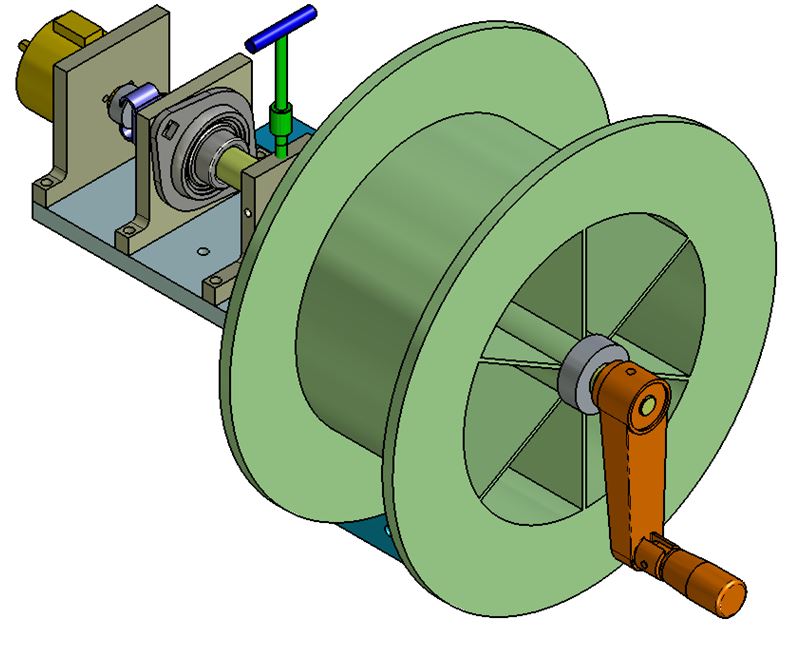

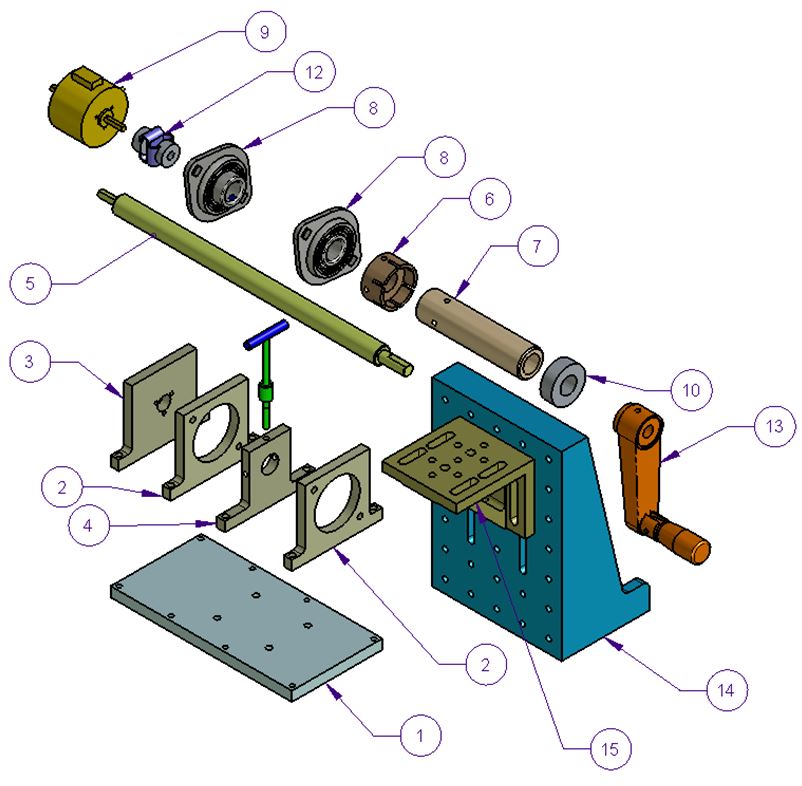

Proprietary Process (2004) - SolidWorks views
