Animations - Latch System
(2001)

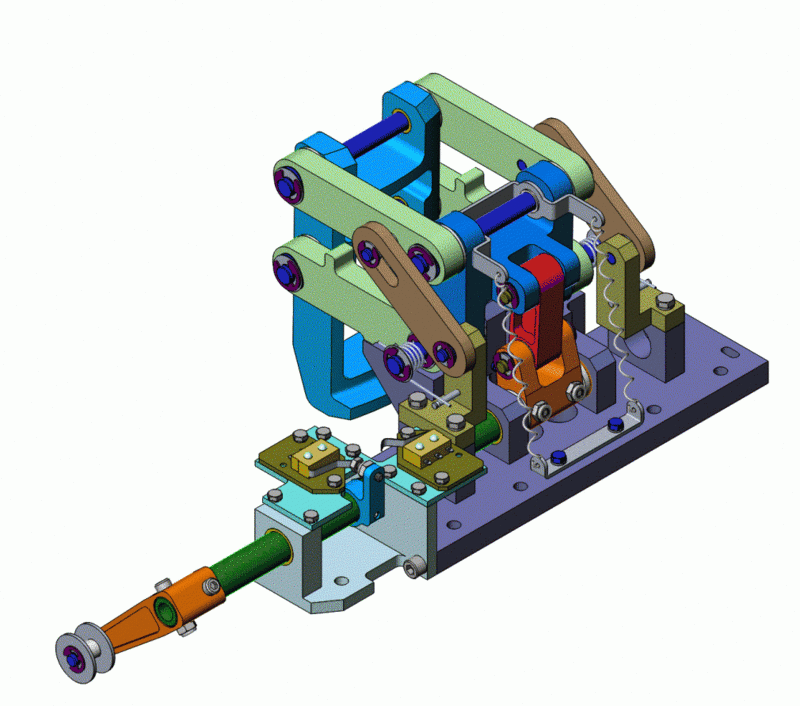

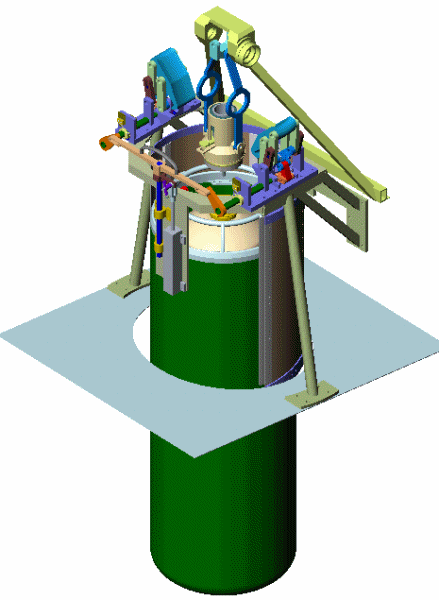

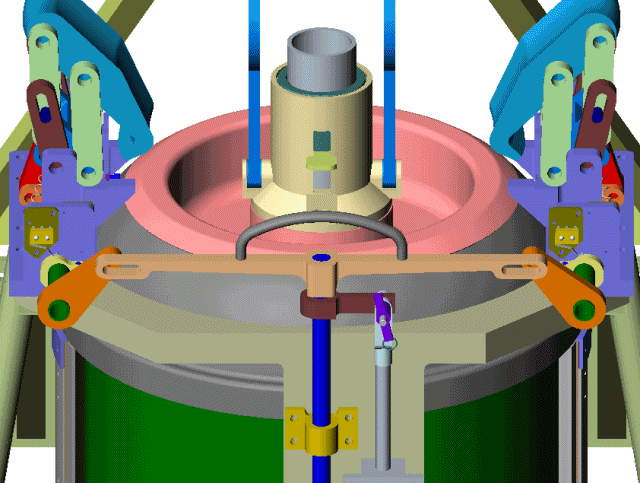

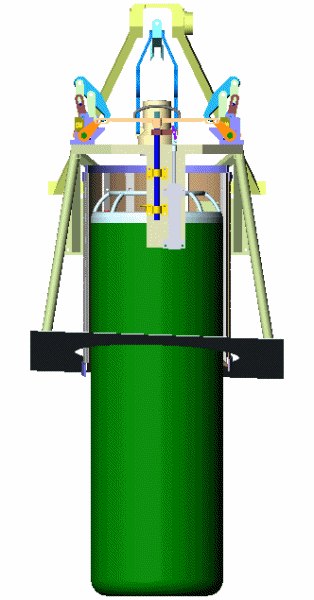

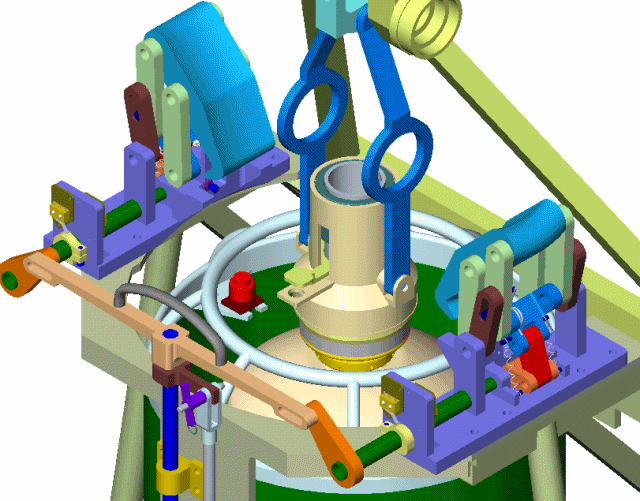

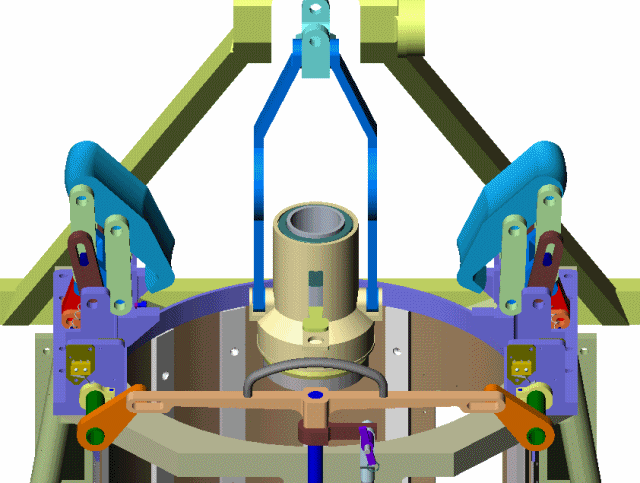

These animations were created from the Solidworks solid model of a proprietary hydraulically actuated Latch System. They were used to present, and explain, and verify the design to both my customer and my customer's customer. If a picture is worth 1k words, an animation (even a crude one) is worth about 100K.
